SECTION OP-37: RV-10 WIRING HARNESS

From RV10 Community Wiki
Jump to navigation Jump to search

Build Instruction Updates

  • N/A

Check for more recent updates here

Page OP-37-12 Step 4

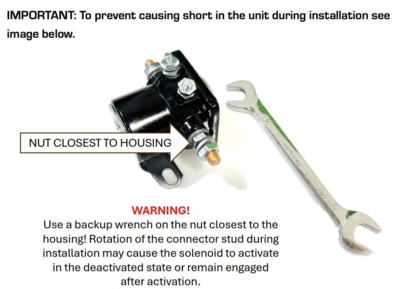

Note: improper installation my lead to the solenoid being shorted internally which means the prop will spin when turning the master on.

See also this FB post and this installation instruction from Skytec.

Note: Vans does not specify the torque for the ES 24115 solenoid terminals on the RV-10 plans, but DOES specify the torque to be 70 in-lb on the RV-14 plans, which use the same solenoid.
