SECTION 30: STEP INSTALLATION

Build Instruction Updates

• N/A

Check for more recent updates here

Hints

• Consider installing a pair of "step bushings" (https://www.tcwtech.com/product/rv-10-products/) in your RV-10 steps. Without them, it is likely that over time the bolt holding your step in place will enlarge the hole, and you'll have some movement/play in your step.
  The instructions say to use a nylon string but something more sturdy is necessary should you need to pull the bushing back.
  The bushings may require to be buffed to reduce their diameter to fit into the steps.
  Make sure the step's bolt holes and the open end of the step are properly deburred before inserting the bushing.


Page 30-2 Step 4

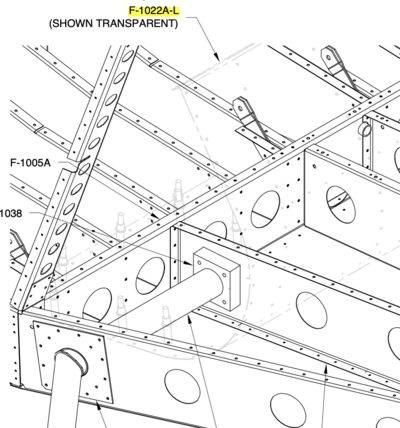

• On some plans, the transparent baggage floor F-1022A-L is not showing as outline (it's of gray color). Please check the pdf of the electronic version.


• See this FB thread on how to have the floor in and mark at the same time.

Page 30-3 Step 3

• Consider installing Airward access covers or Vans 6 x 5 access covers to be able to reach the step bolts later. This requires drilling the step bolt holes at a 45 degrees angle, so the bolts can come out without touching the baggage floor, see Good Plane Living Blog.
