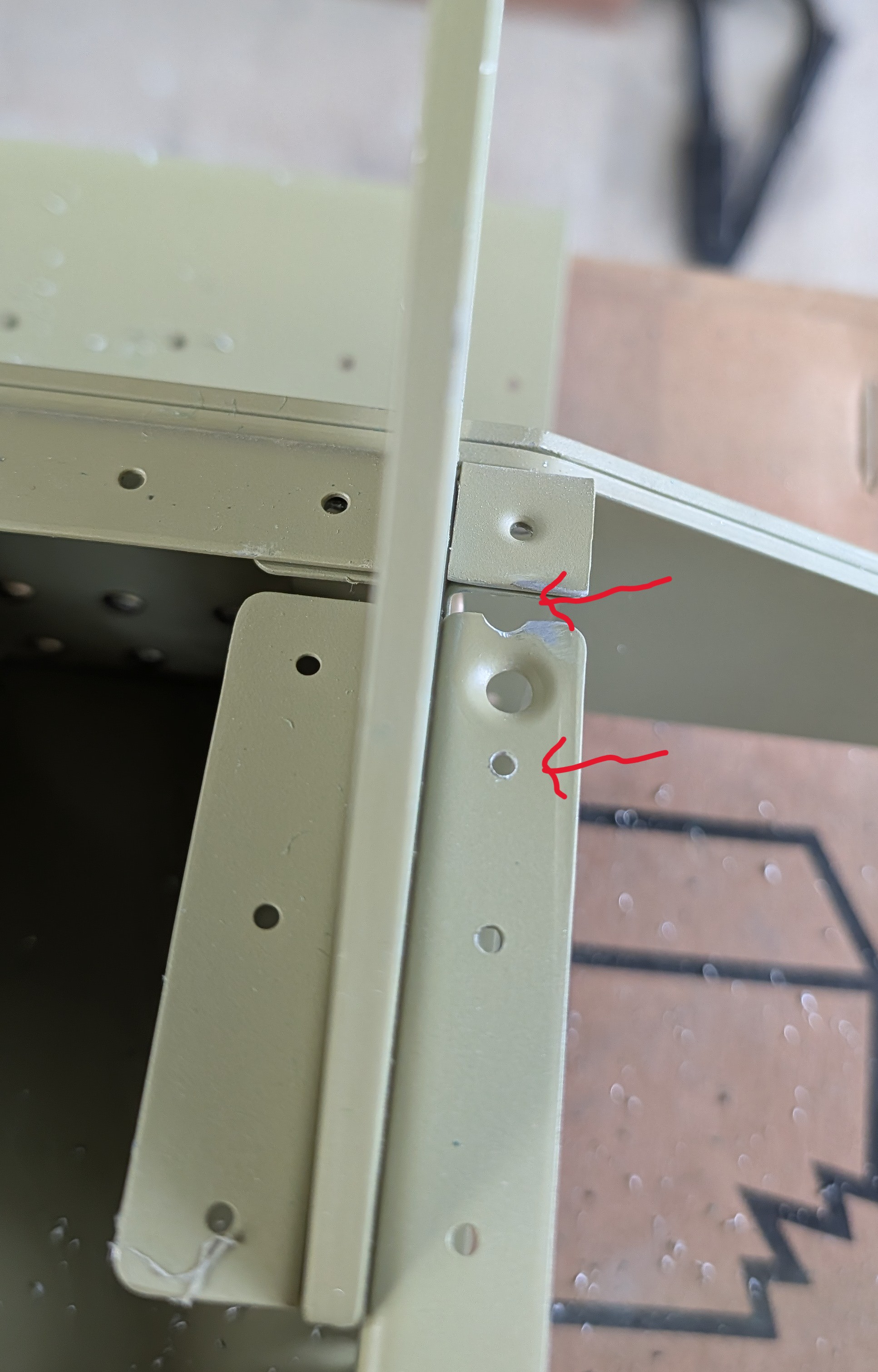

Here is a picture showing where you will need to dimple and install a nutplate (later when attaching the wing bottom skins), but the dimple of the #8 hole is difficult or impossible to do at that time and should be done during section 14. You can also consider match-drilling the #40 attach hole forward of that #8 hole and notching space for a rivet aft of that #8 hole.
