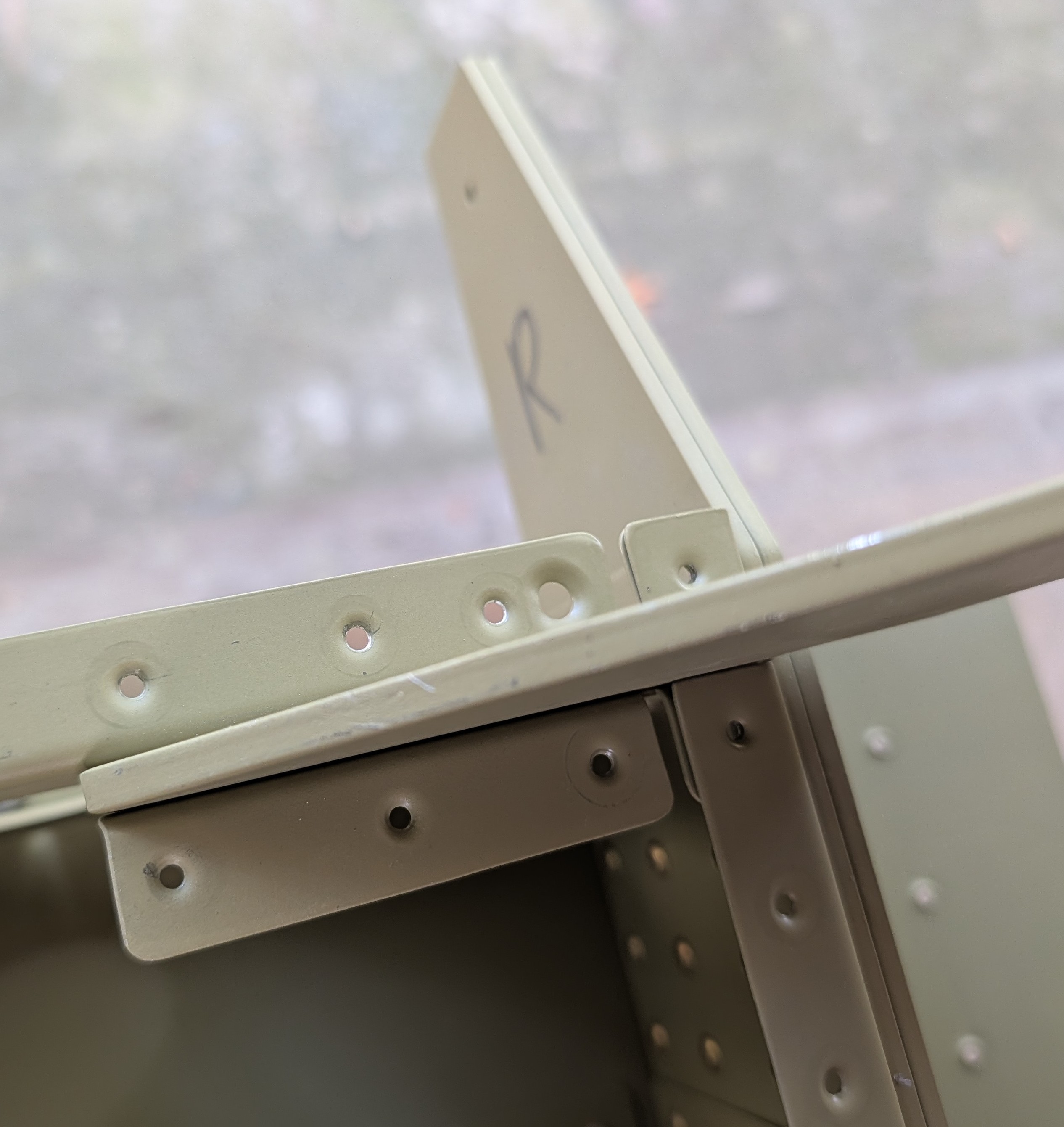

Here is a picture showing where you will need to dimple and install a nutplate when attaching the wing bottom skins, but the dimple of the #8 hole is difficult or impossible to do at that time and should be done during section 14.
