Original file ‎(1,245 × 1,047 pixels, file size: 441 KB, MIME type: image/png)

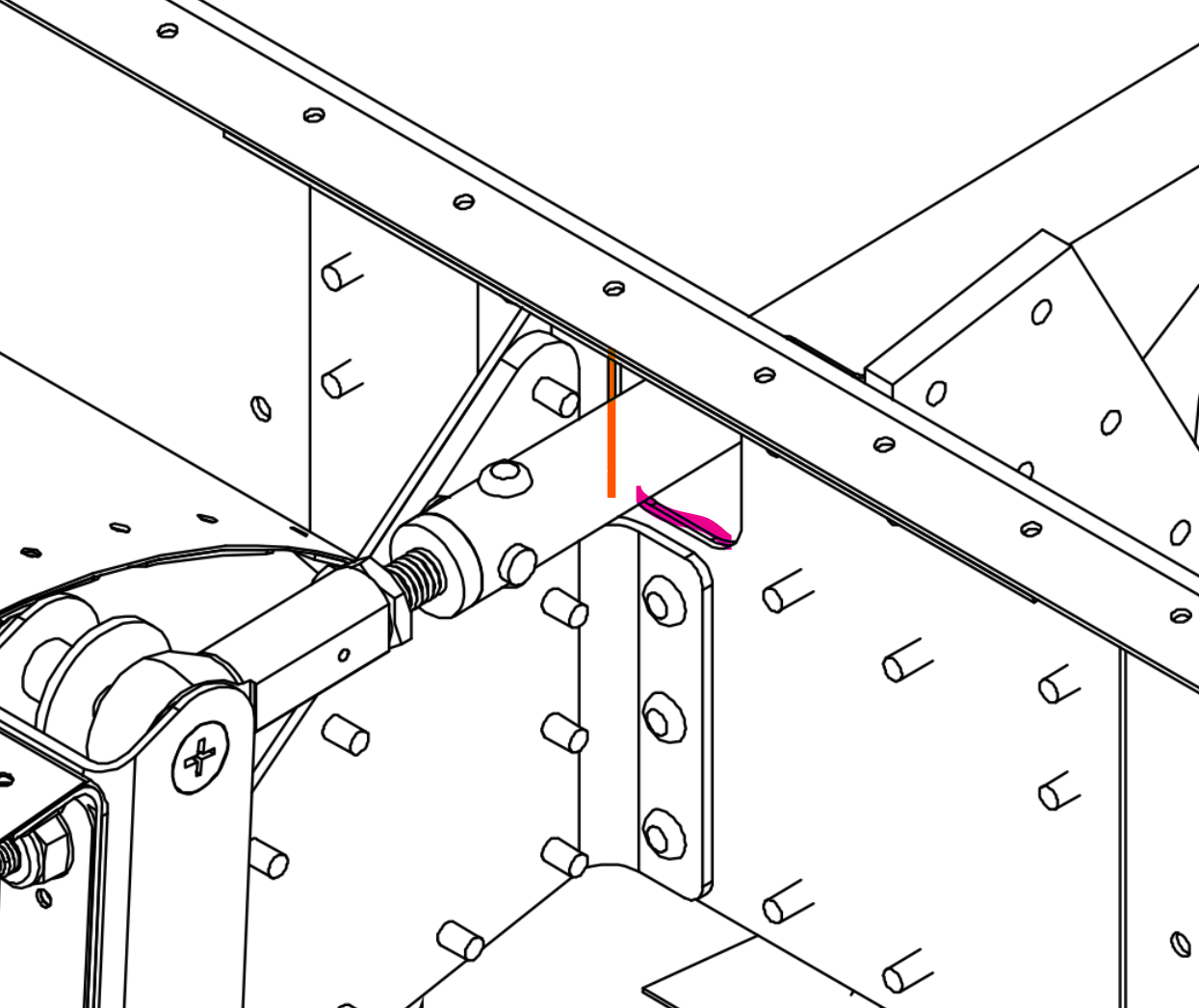

Purple shows possible interference unless your kit has already had this opening enlargened. Orange shows possible contact by pushrod before aileron hits its stops.
