See also section CAD_CAM_Files if you have a CNC machine.
Consider joining the 3D Printed Aircraft Parts FB group.
Warning: Depending on the filament material, 3D-printed parts may not withstand high temperatures, e.g. those encountered in an engine compartment. One example is this Cozy Mk IV airplane crash where a commercially 3D-printed air induction elbow collapsed. Source.

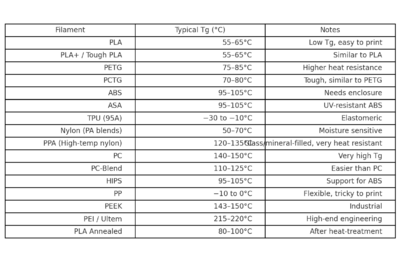

Here is a material list and their glass temperatures (caution: composed by AI):
- Les Kearney's Collection of 3D printed parts for the RV-10
- Allan's wing conduit and pitot line bracket
- Shawn's wing conduit and pitot line bracket
- FB thread on printing wing conduit brackets
- Oil Cap with center hole for engine dehumidifier
- Conduit holder with variable tilt angle
- Front RV-10 vent plug
- Glareshield strut compass holder (stl file), credit Igor, VAF member supik
- FB thread on avionics fan controller enclosure
Fan controller enclosure V1.stl
Fan controller lid V1.stl - Current Sensor mount by Rodrigo
- Current Sensor mount for AWG 2 cable by Martin. Uses 3 cable ties to hold the parts and cable together.
Onshape Project: current_sensor_mount
- End cap for armrest
End Cap stl file - Door hinge alignment jig. Print 2 of these and snap them to the bottom of WD-1018 in lieu of the three .125 scrap aluminum pieces for spacing (see 45-06 step #3).
Hinge alignment jig STL file - Headset hanger
Headset Hanger stl file - Throttle quadrant handle
Throttle Handle stl file - 3D-printed Tools for Beringer Wheels
5 inch cone stl file
6 inch cone stl file - Template for trimming the flap torque tube bushings
Flap bushing template.stl
